Welcome to Copilot’s documentation!

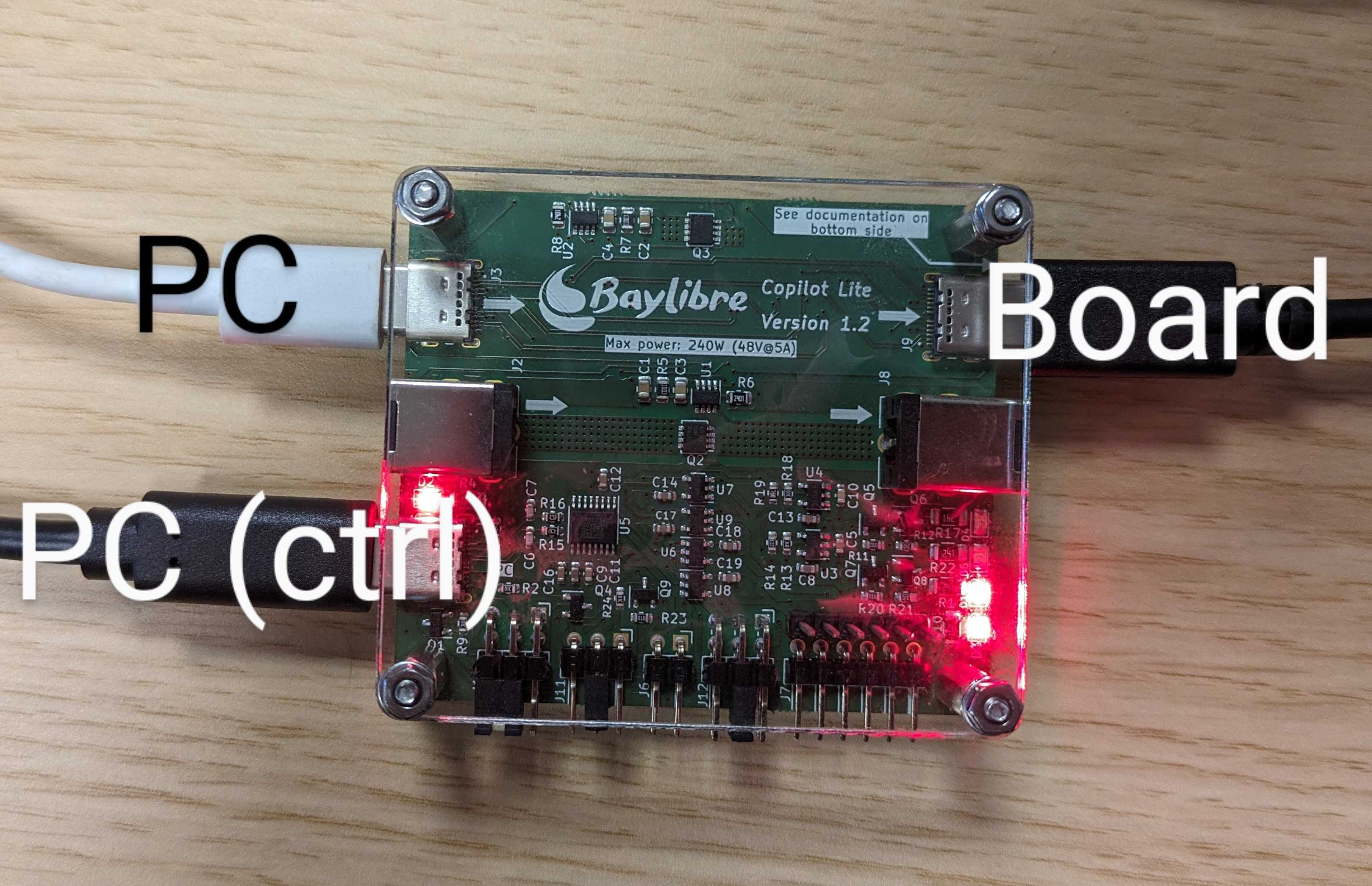

Copilot is a small device used to control the power and UART of a Device Under Test (DUT). Copilot is controlled and powered by a PC using a single USB-C connection. It controls the DUT power supply through either another USB-C connection or a barrel jack connection.

Features

• Power switching with a simple command available in many distributions:

  gpioset /dev/copilot/by-id/${ID_USB_SERIAL_SHORT}/gpiochip 0=1


• Switch power up to 48V/5A via USB-C or Power Jack

• Connect to DUT UART on 1.8/3.3/5V

• Provide 3 additional GPIOs for other DUT related tasks

Documentation:

• Getting started
  • Hardware setup
  • Udev rules
  • Switch power
  • Connect to a UART
• Tips and tricks
  • Creating your own jack cable
• Technical information
  • Barrel jack power channel
